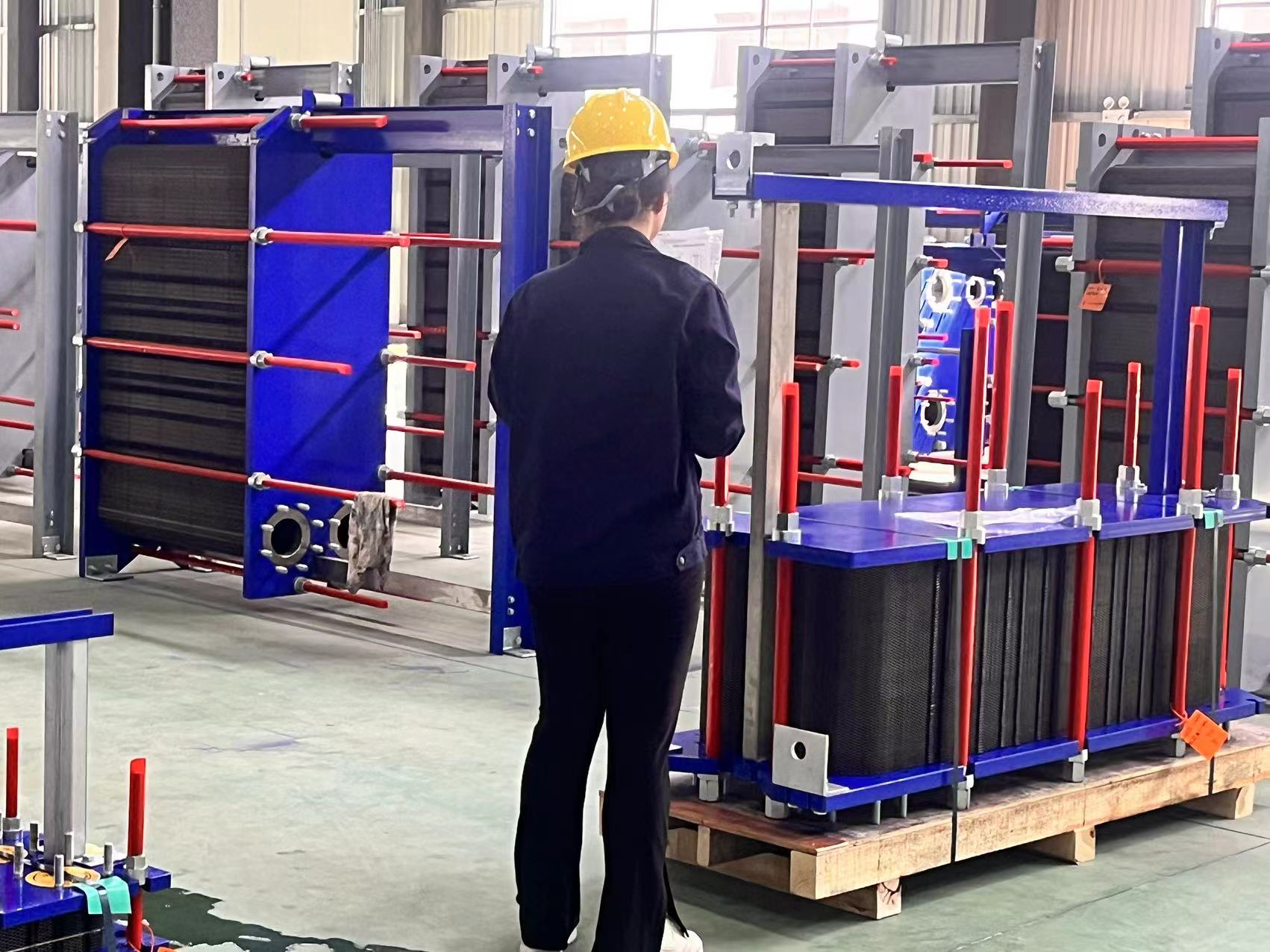

Detailed Explanation of KDP Plate Heat Exchangers in Ships: Applications and Process Flow
1. Marine PHE Applications:
Primarily for cooling/heating (central cooling, fuel heating, oil cooling).
2. Process Flow:
Includes seawater-freshwater exchange, staged fuel heating, and high-viscosity oil cooling.
3. Material Selection:
Seawater/high-sulfur: Titanium Gr2 or 254SMO
Low-sulfur/freshwater: 316L
High-temp/pressure oil: 2205 Duplex

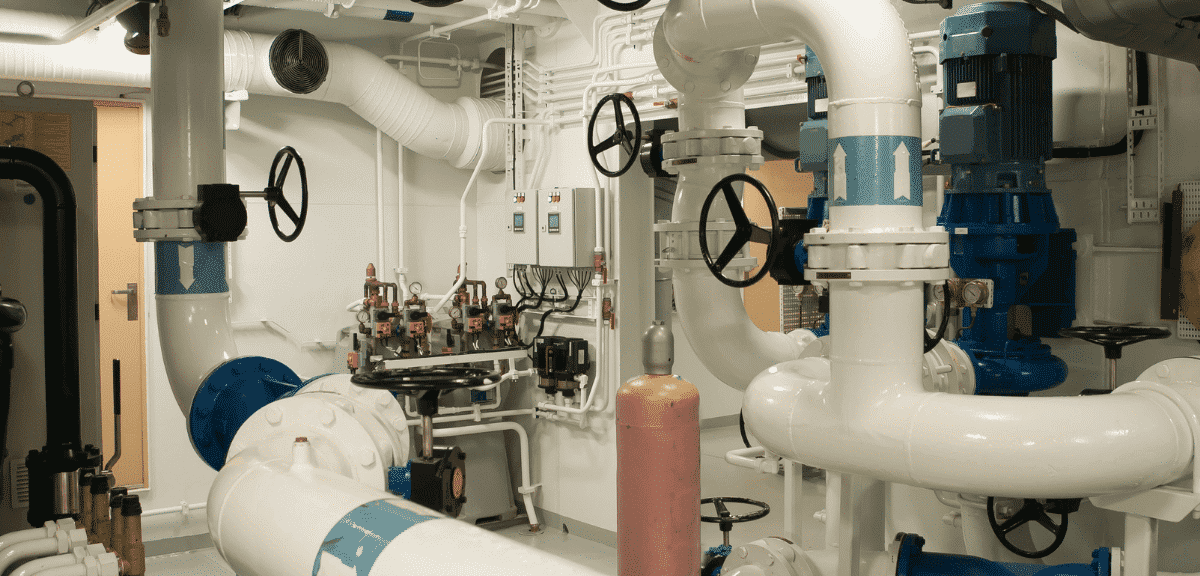

Key Applications in Marine Systems
Plate heat exchangers (PHEs) are widely used in ships for the following systems:
Typical Process Flow in Marine PHEs

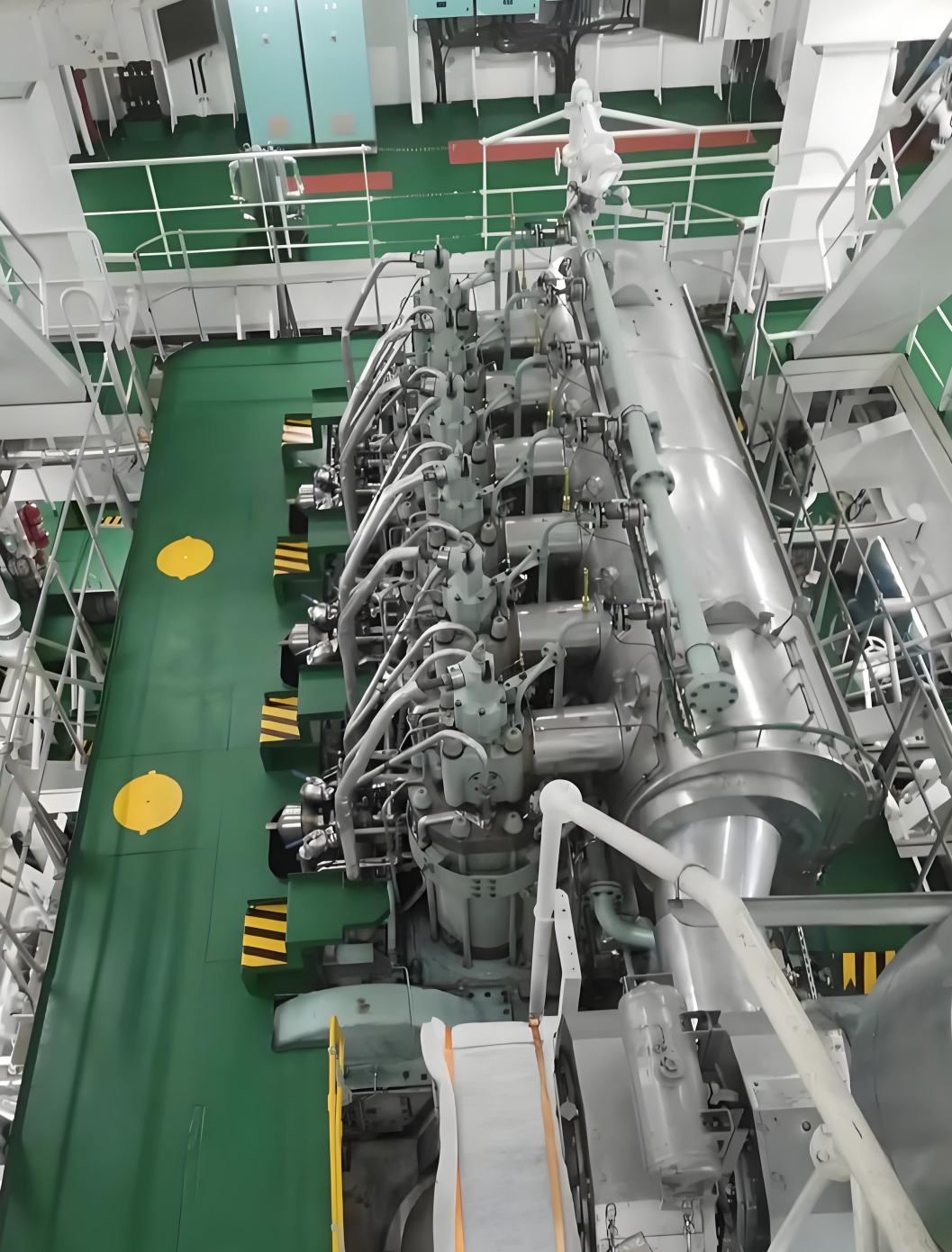

Central Cooling System (Most Common)
A[Seawater Pump] --> B[Filter (100μm)] --> C[PHE (Primary Side)]
D[Low-Temp Freshwater] --> E[Control Valve (PID)] --> C[PHE (Secondary Side)]
C --> F[Engine Cooling System]
Key Parameters:
Seawater velocity: 1.0-1.5 m/s (prevents biofouling)
Freshwater velocity: 0.5-0.8 m/s (reduces pressure drop)
Fouling factor: ≤0.00005 m²·K/W (seawater side)
Fuel Oil Heating (High-Sulfur Environment)
A[HFO] --> B[PHE (Hot Side)]
C[Steam/Heat Medium] --> D[PHE (Cold Side)] --> E[Fuel Injection System]
Key Parameters:
Fuel velocity ≥1.2 m/s (prevents sulfur deposits)
Staged heating (40°C→80°C→120°C)
Lubricating Oil Cooling (High-Viscosity Fluid)
A[Hot Oil] --> B[PHE (Wide Gap Design)] --> C[Cooled Oil]
D[Seawater/Freshwater] --> E[PHE] --> F[Discharge/Circulation]
Key Parameters:
Oil velocity: 0.3-0.6 m/s (prevents coking)
Cooled oil temp.: 50-60°C
Material Selection for Marine KDP Plate Heat Exchangers (Detailed Examples)
(1) Material Selection Criteria
Marine PHE plates must meet:
Corrosion resistance (especially for seawater/HFO)
Mechanical strength (vibration/shock resistance)
Weldability (laser welding compatibility)
Cost-efficiency (titanium is expensive but long-lasting)
Comparison of Common Plate Materials
Application-Specific Examples
Central Cooling (Seawater-Freshwater)
254SMO (seawater side) + 316L (freshwater side)
254SMO withstands high chloride levels (50,000 ppm)
316L reduces cost on the freshwater side
Fuel Heating (High-Sulfur HFO)
Titanium Gr2
Titanium is virtually immune to sulfur corrosion (safe even at ≤3.5% sulfur)
Long service life reduces maintenance costs
Lubricating Oil Cooling (High Viscosity)
2205 Duplex Steel
Resists oil oxidation corrosion
High mechanical strength for high-pressure systems
Summary
Primarily for cooling/heating (central cooling, fuel heating, oil cooling).
Includes seawater-freshwater exchange, staged fuel heating, and high-viscosity oil cooling.
Seawater/high-sulfur: Titanium Gr2 or 254SMO
Low-sulfur/freshwater: 316L
High-temp/pressure oil: 2205 Duplex
